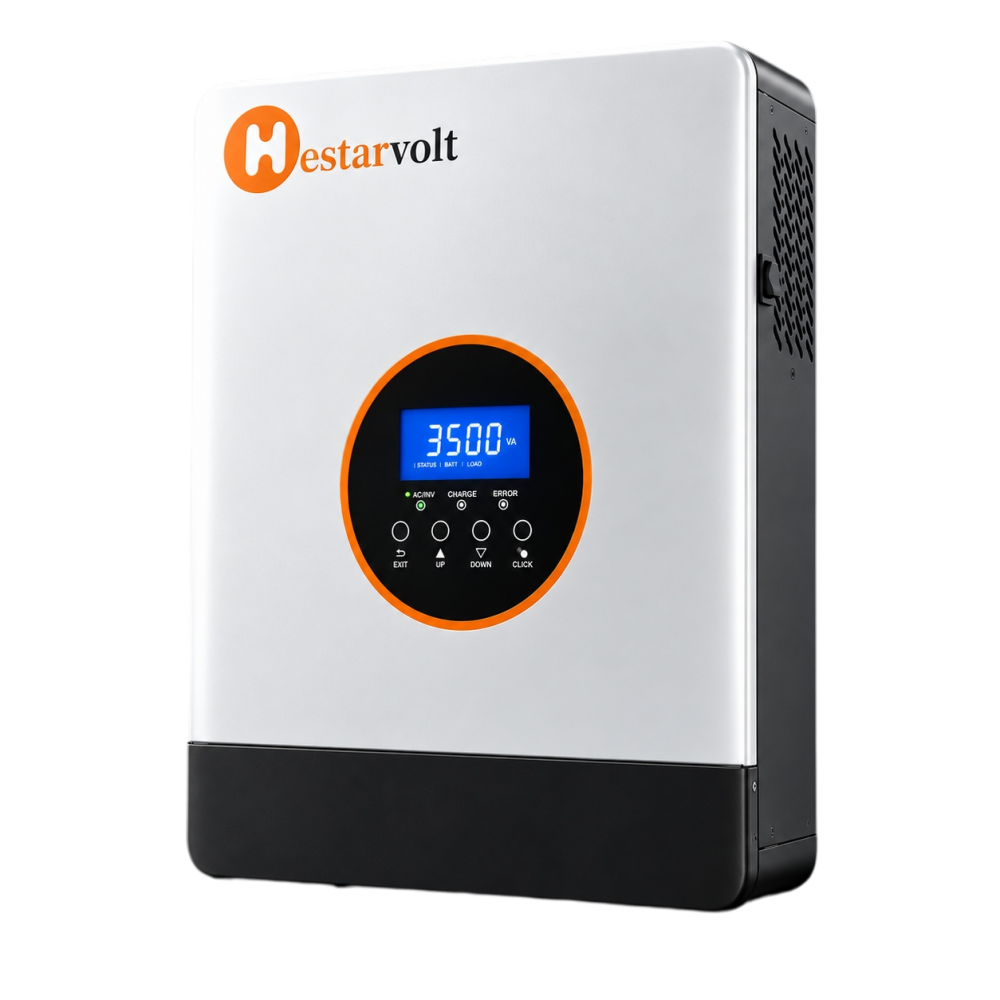

Solar Inverter
HP 3500VA
- 3.5kVA
- Single Phase
- Lithium Battery Adaptable
- 55–450VDC MPPT
- 100A MPPT
Key Features
A hybrid inverter engineered for continuous power — high PV input range, fast charging and dependable protection.
Specifications
Full technical data across the HP series — from 2200W up to 7000W.
| MODEL | 2200 W | 3200 W | 4200 W | 4200 W | 7000 W |
|---|---|---|---|---|---|
| Rated Power | 2200VA/1800W | 3200VA/3000W | 4200VA/3800W | 4200VA/3800W | 7000VA/6200W |
| INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances) | ||||
| Frequency Range | 50 Hz/60Hz (Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | ||||
| Surge Power | 4000VA | 6400VA | 8400VA | 8400VA | 14000VA |
| Transfer Time | 10ms (for personal computers); 20ms (for home appliances) | ||||
| Waveform | Pure Sine Wave | ||||
| BATTERY & AC CHARGER | |||||
| Battery Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC | 54VDC | 54VDC |
| Overcharge Protection | 15.5VDC | 31VDC | 31VDC | 61VDC | 61VDC |
| Maximum Charge Current | 60A | 80A | 60A | 80A | |
| SOLAR CHARGER | |||||
| Max. PV Array Power | 2000W | 3000W | 6000W | ||
| MPPT Range @Operating Voltage | 55~450VDC | ||||
| Maximum PV Array Open Circuit Voltage | 450VDC | ||||
| Maximum Charging Current | 80A | 110A | 80A | 110A | |
| Maximum Efficiency | 98% | ||||
| PHYSICAL | |||||
| Dimension H*W*D (mm) | 405*286*98 | 423*290*101 | 423*290*106 | ||
| Net Weight (kgs) | 5 | 5.5 | 6.8 | 6.9 | 8 |
| Communication Interface | Two communication One RS485 port for BMS ports; Another RS485/RS232 for remote monitoring | ||||
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operating Temperature | -10°C to 55°C | ||||
| Storage Temperature | -15°C to 60°C | ||||

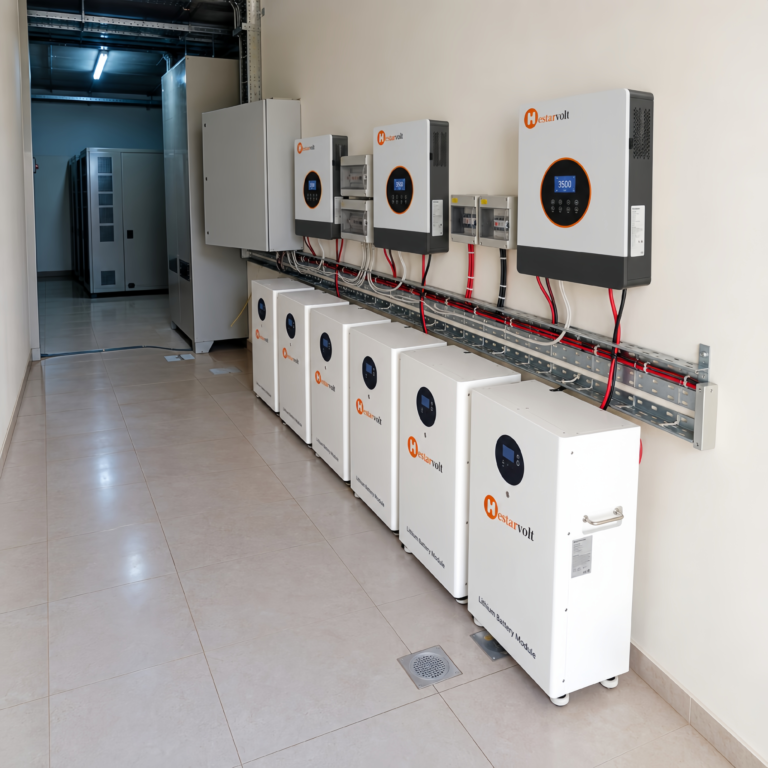

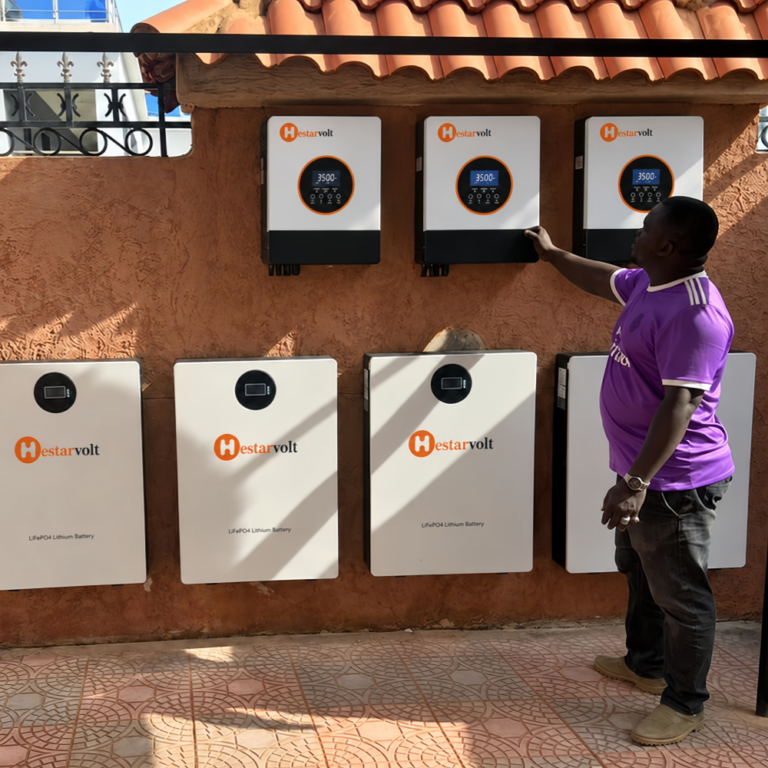

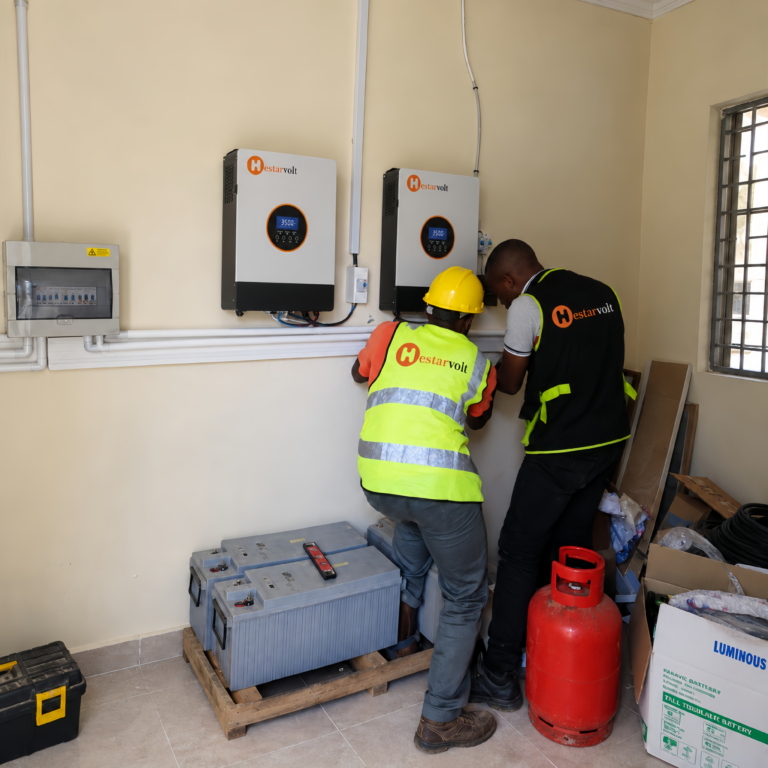

Related Cases
Real installations powered by Hestarvoll solar inverters.
Download
Get the datasheet and user guide for the HP series solar inverter.
DatasheetHP series 2200W–7000W · PDF
Download
User GuideHP10-3500VA installation & operation manual · PDF
